Glass Fuse

Size: 6.35 mm Dia. x 31.8 mm Length

Specifications

Availability: 500mA, 600mA, 630mA, 800mA,1A, 1.25A, 1.5A, 1.6A, 2A, 2.5A, 3A
                    3.15A, 3.5A, 4A, 5A, 6A, 6.3A, 8A, 10A, 15A, 20A, 25A, 30A, 35A

Size: 5mm Dia X 20 mm Length

Specifications

Availability:500mA, 600mA, 630mA, 800mA,1A, 1.25A, 1.5A, 1.6A, 2A, 2.5A, 3A
                    3.15A, 3.5A, 4A, 5A, 6A, 6.3A, 8A, 10A, 15A, 20A, 25A, 30A, 35A

Size: 4.8mm dia X 15.9mm length

Specifications (Lead Fuse)

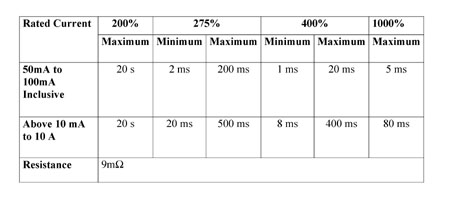

Time/Current Characteristics.
The fuse should carry 100% of the rated current continuously
The fuse should open at 200% of the rated current within 10 sec
Availability:
                    1 A to 20 A

Size: 4.8mm dia X 15.9mm length

Specifications

Time/Current Characteristics.
The fuse should carry 100% of the rated current continuously
The fuse should open at 200% of the rated current within 10 sec
Availability:
                    500 mA to 2A
